  1. 2. Scripting with Karamba3D inside Grasshopper

2.1: Hello Karamba3D

Previous1.2: BasicsNext2.2: Data Retrieval from Models

Last updated 6 months ago

For small scripts the Grasshopper scripting components “C# Script”, “VB Script” or “Python Script” from the “Maths” subsection come in handy. A good introduction to scripting in GH can be found in the “Grasshopper Primer”.

All examples which follow can be found in the “”-collection that accompanies this manual. When opening them in Grasshopper do not panic if some components turn red. In that case some paths need adaptation (see below).

Setting up a Script in Rhino6/7

To begin using Karamba3D in a Grasshopper script, follow this example (refer to “HelloKaramba3D_RH7.gh” linked at the bottom of the relevant documentation page):

  1. Add a C# Scripting Component

    • Place a C# scripting component onto the Grasshopper canvas.

  2. Manage Assemblies

    • Right-click on the component's icon and select "Manage Assemblies..." from the context menu.

  3. Add Karamba3D Assemblies

    • Under "Referenced Assemblies," click "Add."

    • Browse to locate the karambaCommon.dll and karamba.gha files. These files are typically located in the Rhino Plug-ins folder: C:\Program Files\Rhino7\Plug-ins\Karamba3D

    • Ensure you select the appropriate file type:

      • By default, only .dll files are visible.

      • Use the drop-down menu in the lower-right corner of the file browser to select "Grasshopper Assemblies (*.gha)" for the .gha file.

This setup makes the Karamba3D assemblies accessible to your script, enabling full integration with the plug-in.

Setting up a Script in Rhino8

The Rhino 8 script editor for C# introduces significant improvements over its predecessor, including built-in debug support. To reference external assemblies, you can explicitly include them in your code.

Adding Karamba3D Assemblies

For example, the following lines reference the required Karamba3D assemblies (see "HelloKaramba3D_RH8.gh" at the bottom of this page):

#r "C:\Users\<YourUsername>\AppData\Roaming\McNeel\Rhinoceros\packages\8.0\Karamba3D\3.1.40918\KarambaCommon.dll"
#r "C:\Users\<YourUsername>\AppData\Roaming\McNeel\Rhinoceros\packages\8.0\Karamba3D\3.1.40918\Karamba.gha"```
  • Replace <YourUsername> with your specific user name to match your installation path.

  • The files are located in the personal folder if Karamba3D was installed via the YAK package manager.

Convenient Assembly Selection

For a more user-friendly approach to referencing assemblies:

  1. Use the "Box" button in the script editor toolbar to open the assembly selection browser.

  2. Browse and add the required files directly.

By following these steps, you can integrate Karamba3D assemblies into your Rhino 8 C# scripts with ease.

Explanation of Code

The source-code to be added inside the C#-component looks like this:

    ...
    using Karamba.Models;
    ...
    private void RunScript(object Model_in)
    {
        var model = Model_in as Model;
        if (model == null) {
            throw new ArgumentException("The input is not of type model!");
      }
      Print("Number of Elements: " + model.elems.Count);
      Print("Number of Materials: " + model.materials.Count);
      Print("Number of Cross sections: " + model.crosecs.Count);
    }
  • Namespace Inclusion: The using directive (using Karamba.Models;) allows shorter, more readable code. For example, instead of typing Karamba.Models.Model, you can simply use Model.

  • Casting the Input:

    • Model_in is provided as an object.

    • To access its properties, it must be cast to the correct type (Model).

    • The if condition checks if the casting was successful. If not, an ArgumentException is thrown to handle invalid inputs (e.g., a vector plugged into the model input).

  • Accessing the Model:

    • Once cast, the model variable holds a reference to the Karamba3D model.

    • The script retrieves data about the model, such as the count of elements, materials, and cross-sections.

  • Output Details:

    • Use Print to display the results in the Grasshopper console.

    • Example outputs:

      • Number of Elements: 1

      • Number of Materials: 1

      • Number of Cross sections: 1

API Documentation

For detailed information about the Model class and its API, visit the , specifically under Karamba.Models.

Karamba3D Scripting Examples Github
Karamba3D API Documentation
14KB
HelloKaramba3D_RH7.gh
15KB
HelloKaramba3D_RH8.gh

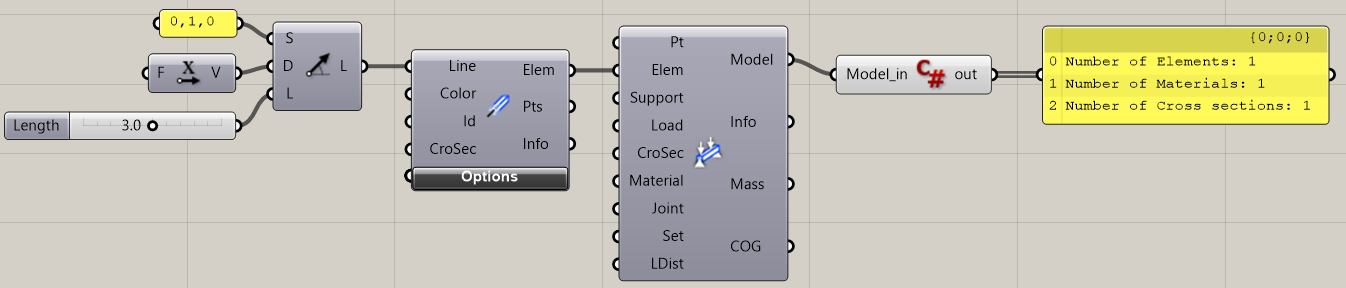

Fig. 2.1.1: A minimal K3D-model for retrieving the number of elements, materials and cross sections.
